10gbase X2 Optical Module 1550nm Wavelength 40km X2 10gb Er

Name: 10gbase X2 Optical Module 1550nm Wavelength 40km X2 10gb Er
Brand: Sourcelight or OEM
Price: 1 USD

Brand Name : Sourcelight or OEM

Model Number : X2 10Gb ER

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500PCS Per Week

Delivery Time : Shipped in 1 days after PO confirmed

Packaging Details : 5PCS Plastic trays; 1pc Independent box.

Product name : X2-10Gb-ER

Wavelength : 1550NM

Distance : 40KM

Transmitter : Cooled EA-DFB Laser

Receiver : PIN photo detector

Connector : Duplex SC/UPC

Contact Now

10gbase X2 Optical Module Er For Compatible 1550nm 40km X2 10gb Er

Overview
X2 ER transceiver module is a hot pluggable in the Z-direction module that is usable in typical router line card applications, Storage, IP network and LAN and compliant to X2 MSA.

The X2 ER is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and De-mux with clock and data recovery(CDR).This version of Sourcelight Inc. transceiver line uses an cooled 1550nm EML Laser Diode to achieve 40km over standard single mode fiber as 10GBASE-ER of the IEEE 802.3ae.

Features

X2 MSA Compliant
70-PIN connector
SC duplex receptacle package
Cooled EA-DFB/PIN-PD
Power supply: +5.0 V, +3.3 V, APS:+1.2 V
Power Dissipation 3.5W Maximum
0ºC to 70ºC Operating Case Temperature
Digital Diagnostic Monitoring
Management and control with MDIO 2-wire bus
XAUI electrical interface 4 x 3.125 Gb/s Ethernet
40km ER(Extended Range)10GBE
RoHS6 compliant and lead free

Parameter

Package (Form Factor)	X2 er 40km
Data Rate (typical)	10.3 Gb/s
Centre Wavelength	1550nm
Distance	40km
Diagnostics	Digital Monitor
Transmitter	Cooled EA-DFB Laser
Receiver	PIN photo detector
TX Output Power (dBm)	-1~+2
RX Sensitivity (dBm)	-15.8
Low/High Case Temperature	0°C~70°C
Voltage Supply (typical)	3.3v
Connector	Duplex SC/UPC

Application

10 Gb/s Ethernet transmission systems

Other 10Gbps Ethernet Transmission System

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

Product Tags:

x2 transceiver module

cisco x2 modules

China 10gbase X2 Optical Module 1550nm Wavelength 40km X2 10gb Er wholesale

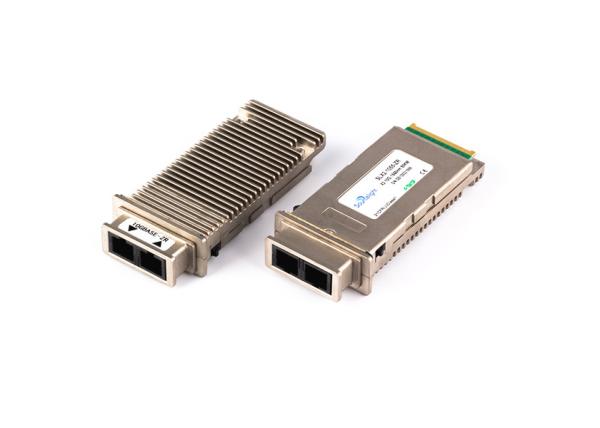

10gbase X2 Optical Module 1550nm Wavelength 40km X2 10gb Er Images
