Overview

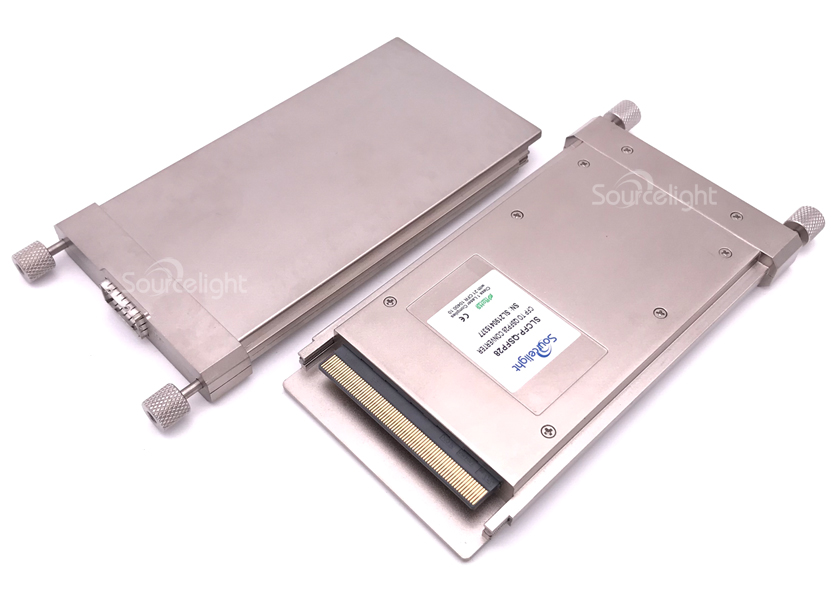

The 100G CFP to QSFP28 Adapter module converts a CFP MSA interface to 1-port of 100GE QSFP28. Its compliant with the CFP MSA.

Sourcelight 100G CFP to QSFP28 Adapter module converts 10 bidirectional 10G channels to 4 bidirectional 25G channels operating at up to 28Gbps per channel. The Adapter supports FEC (Forward Error Correction) function; the user can enable the FEC function through the register configuration.

Features

• Compliant to CFP MSA Management Interface Specification Version 2.2

• Converts 10 bidirectional 10G lanes to4 bidirectional 25G lanes

• 1 port 100G QSFP28 TX&RX

• Support 100G IEEE 802.3bj NRZ FEC

• Transmission data rate up to 28Gbps per channel

• OTU4 compatible(FEC is invalid when OTU4 data rate mode is on)

• MDIO digital diagnostic interface and control capabilities

• Power class 2 (Adapter<5W max)

• Hot pluggable electrical interface

• case temperature: 0°C~ +70°C

• Single 3.3V supply

• RoHS 6 compliant

Parameter

Application

• 100GBE interconnects, IEEE 802.3ba 100GBASE-LR4(Adapter+QSFP28_LR4), IEEE 802.3bm 100GBASE-SR4(Adapter+QSFP28_SR4)

• High-speed core router connections & Datacom/Telecom switch

• Data aggregation and backplane applications

• Proprietary protocol and density application
